ISL97691

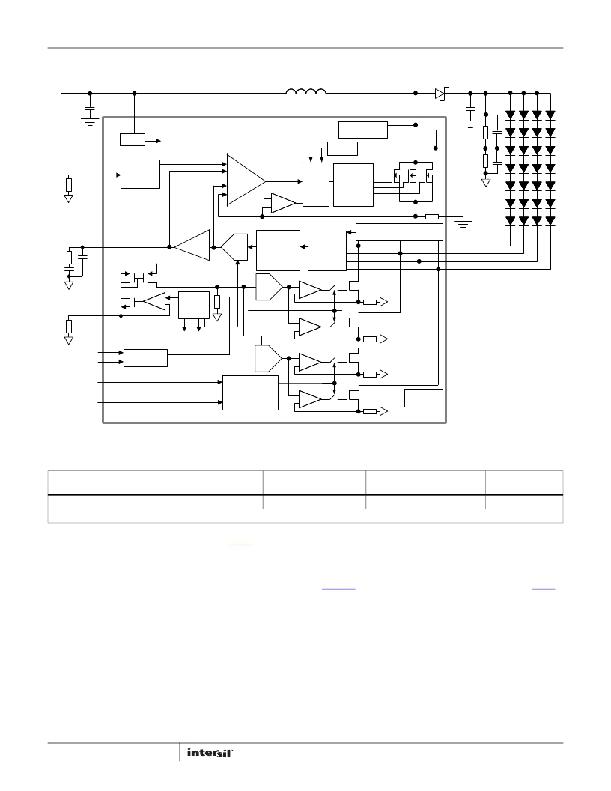

Block Diagram
V IN = 2.4V~5.5V
10μH
UP TO 26V
VIN
ISL97691
O/P SHORT
LX
2X4.7μF
REG
INTERNAL BIAS
OVP
OVP
FSW
OSC &
RAMP
COMP
S=0
IMAX
ILIMIT
PWM/
PFM
LOGIC
FET
DRIVERS
PGND
OPEN CKT, SHORT CKT
COMP
GM
AMP
8-BIT
DAC
DYNAMIC
HEADROOM
CONTROL
HIGHEST
VF STRING
DETECT
DETECTION
CH1
CH2
CH3
CH4
ISET
+
-
REF
GEN
6-BIT
DAC
DC1
+
-
PWM1
1
+
2
REF_ OVP REF_ VSC
-
1-WIRE_1
1-WIRE_2
1-WIRE I/F
6-BIT
DAC
DC2
+
-
3
PWMI_1
PWMI_2
PWM DIMMING
CONTROLLER
+
-
PWM2
4
TEMP
SENSOR
Ordering Information
PART NUMBER
(Notes 3, 4, 5)
ISL97691IRTZ
7691
PART
MARKING
TEMP RANGE
(°C)
-40 to +85
16 Ld TQFN
PACKAGE
(Pb-free)
PKG.
DWG. #
L16.3x3D
ISL97691IRTZ-EVALZ
Evaluation Board
NOTES:
3. Add “-T*” suffix for tape and reel. Please refer to TB347 for details on reel specifications.
4. These Intersil Pb-free plastic packaged products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin
plate - e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products
are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
5. For Moisture Sensitivity Level (MSL), please see device information page for ISL97691 . For more information on MSL please see techbrief TB363 .
2
FN7840.1
February 1, 2013
